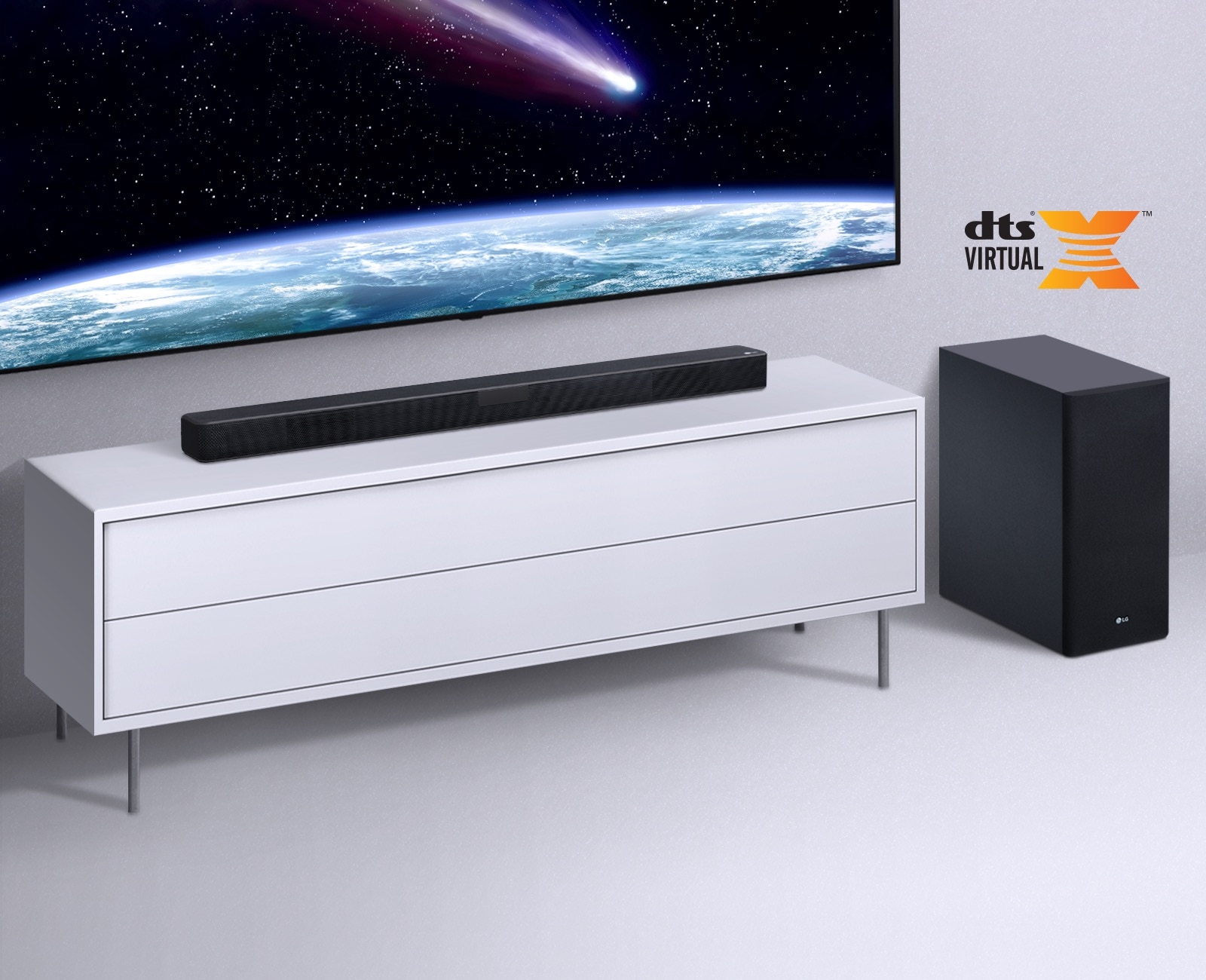

Immersive Sound, DTS Virtual:X
LG Sound Bar SL5Y with DTS Virtual:X technology delivers an immersive sound. Utilizing three front speakers and a subwoofer, DTS technology creates a more immersive experience with sound that surrounds you.
High Resolution Audio
High Resolution Audio delivers 96kHz sampling rates and 24bit depth, both of which can contribute to more accurate sound, and a more enjoyable listening experience.

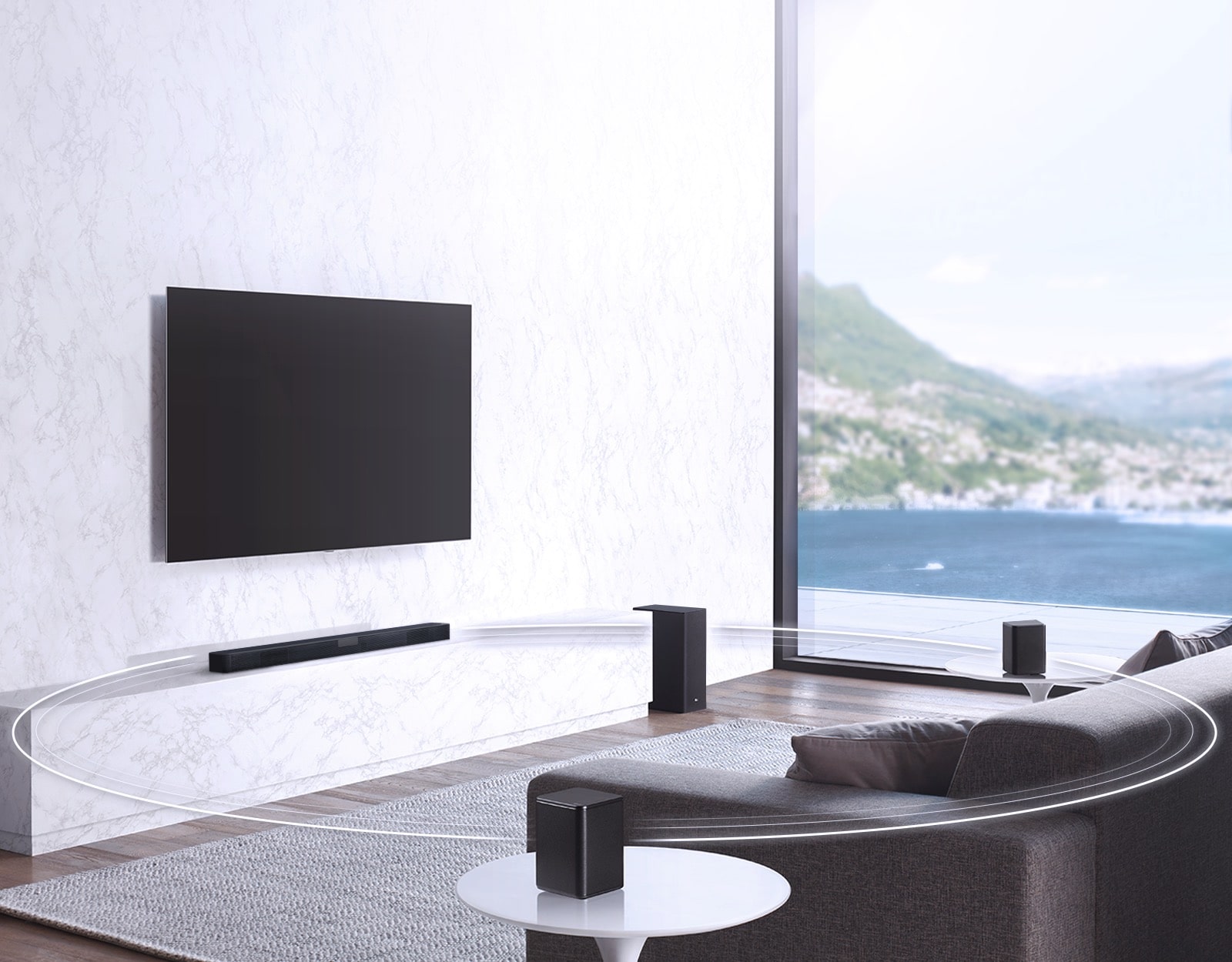

Connect and Upgrade to Surround
Upgrade your existing LG Sound Bar SL5Y easily with the optional SPK8-S. The wireless rear speaker adds two audio channels to boost your system’s power by 140 watts. Enjoy an elevated, powerful surround sound experience.
Versatile Connectivity
LG Sound Bar SL5Y has various inputs and convenient options such as HDMI, Optical and Bluetooth®.
Bluetooth, Stream Anything
Streaming music directly via Bluetooth® from your smartphone to LG Sound Bar SL5Y.

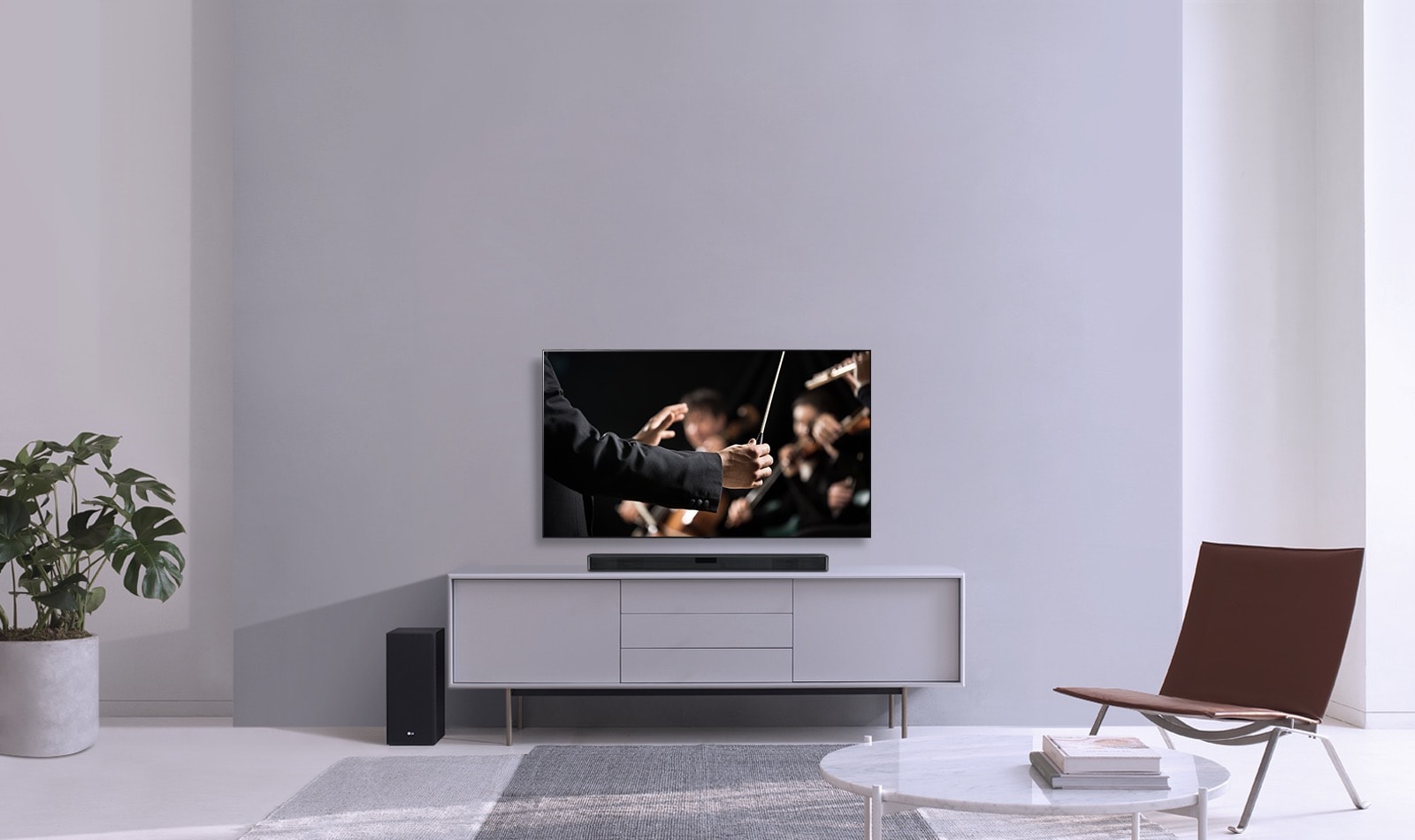

TV Sound Sync
LG Sound Bar SL5Y can be simply connected to your LG TV via Bluetooth® and optical. Enjoy more plentiful TV sound with a simple connection.
-
- Main (W x H x D / mm)
- 890 x 57 x 85
- Subwoofer (W x H x D / mm)
- 171.0 x 393.0 x 248.5
-
- Carton Size (W x H x D / mm)
- 984 x 217 x 547
- Carton Type
- Offset
-
- Main (Net Weight / Kg)
- 2.35
- Subwoofer (Net Weight (Kg)
- 5.3
-
- Gross Weight (Kg)
- 9.75
- Built-in Foot (H) mm
- 14
-
- Material – Mainset – Front
- Mold
- Material – Mainset – Top/Bottom
- Mold/Mold
-
- Material – Subwoofer – Front
- Jersey
- Material – Subwoofer – Body
- Wood
-
- Container Quantity – 20ft
- 400
- Container Quantity – 40ft
- 960
-
- Container Quantity – 40ft (HC)
- 960
- Matching TV size (’18 New Designed LG TV)
- Over 40 inch
CHANNEL/OUTPUT POWER
-
- Channel
- 2.1ch
- Output Power (THD 10%) – Total
- 400W
-
- Output Power (THD 10%) – Front
- 90W (45W+45W) x 2
- Output Power (THD 10%) – Subwoofer
- 220W (Wireless)
-
- Audio DAC – 96kHz/24bit
- Yes
SPEAKER
-
- Main – SPL
- 82dB
- Main – System
- Closed
-
- Main – Tweeter Unit – Front Only
- 20mm Silk Dome
- Main – Woofer Unit
- 40 x 100mm/4ohm
-
- Main – Impedance
- 4ohm
- Subwoofer – SPL
- 85dB
-
- Subwoofer – System
- Bass Reflex
- Subwoofer – Woofer Unit
- 6 inch
-
- Subwoofer – Impedance
- 3ohm
CONNECTIVITY
-
- General – Optical
- Yes(1)
- General – HDMI 1.4 (HDCP 1.4) – In / Out
- Yes(1) / Yes(1)
-
- General – USB
- Yes
- Wireless – Bluetooth 4.0
- Yes (Bluetooth codec SBC and AAC)
INFORMATION DISPLAY
-
- Display Type
- LCD (5 Char.)
SOUND MODE
-
- Hi-Res Audio – Sampling – 24bit/96kHz
- Yes
- Sound Effect – ASC (Adaptive Sound Control : Default)
- Yes
-
- Sound Effect – Standard
- Yes
- Sound Effect – Bass Blast
- Yes (Bass Blast / Bass Blast +)
-
- Sound Effect – Movie / DTS Virtual X
- No/Yes
- User EQ
- Yes
-
- Night Mode – On/Off
- Yes (App)
- Auto sound engine – Default
- Yes
-
- Dynamic Range Control – On/Off
- Yes (App)
- Auto Volume Leveler – On/Off
- Yes (App)
CONVENIENCE
-
- Smart Phone & Tablet Remote App – iOS / Android OS
- No/Yes
- Smart Phone App – Update manager (FOTA)
- Yes
-
- Smart Phone File Playback
- Yes
- Control with your TV Remote – Vol + , – , Mute
- Yes
-
- Sound Sync – Bluetooth (LG TV)
- Yes
- Sound Sync – Optical
- Yes
-
- Automatic Power on/off – Bluetooth (LG TV)
- Yes/Yes
- Automatic Power on/off – Optical
- Yes/Yes
-
- A/V Sync – 0~300ms
- Yes (App)
- SIMPLINK
- Yes
-
- Audio Return Channel (ARC)
- Yes
- Woofer Level volume
- Yes (-15 ~ +6dB)
-
- Channel Level
- Yes (-6 ~ +6 (step), Surround)
- Mute
- Yes
-
- Auto Dimmer
- Yes
- USB Host
- Yes
-
- Bluetooth Stand-By
- Yes
- Wireless Rear Speaker Ready – 1:1 Rx module Type (Wireless Kit for rear)
- Yes
AUDIO FORMAT
-
- LPCM
- Yes
- Dolby Digital
- Yes
-
- DTS Digital Surround
- Yes
- DTS Virtual X
- Yes
-
- FLAC – Up to 192kHz
- Yes
- OGG – Up to 48kHz
- Yes
-
- WAV
- Yes
- MP3
- Yes
-
- WMA
- Yes
POWER CONSUMPTION
-
- Main – Type
- Adaptor (25V, 2A)
- Main – Power Off Consumption
- 0.5W Under
-
- Main – Power Consumption
- 28W
- Subwoofer – Type – SMPS
- 100~240V, 50/60Hz
-
- Subwoofer – Power Off Consumption
- 0.5W Under
- Subwoofer – Power Consumption
- 33W
-
- Subwoofer – Wireless Frequency
- 5.8GHz
ACCESSORIES
-
- Owners Manual – Web (w/ Simple Manual)
- Yes (Full)
- Owners Manual – Book
- Yes (Simple)
-
- Owners Manual – Wall Mount Guide
- Yes
- Owners Manual – Open Source
- Yes (Full)
-
- Remote Control Unit – Model
- MA7
- Remote Control Unit – Battery(Size)
- AAA x 2
-
- Batteries
- Yes
- Warranty Card
- Yes
-
- Wall Mount Bracket
- Yes
- Additional Foot
- Yes
-
- Box Type
- Offset
